Product application of semi-automatic aluminum tube filling and sealing machine
Mainly used for packaging materials with aluminum tubes. This machine is widely used in packaging in the pharmaceutical, daily chemical, food, chemical and other industries. Such as ointment, toothpaste, epoxy glue, 502 glue, hair dye, and other liquid or paste-like materials filling and sealing.
Features of semi-automatic aluminum tube filling and sealing machine:
(1) Touch screen operation, humanized design, simple and intuitive operation.
(2) Cylinder filling control ensures the accuracy of filling.
(3) Photoelectric sensor and pneumatic door linkage control.
(4) Pneumatic execution control valve, high efficiency and safety. The runner can be independently adjusted and cleaned.
(5) Adopt the structure design of anti-drip and anti-drawing filling nozzle.
(6) The material of the whole machine is stainless steel and anodized aluminum alloy. The part connected with the material is made of 304 stainless steel.
(7) 3 folds and 4 folds on the tail are optional.
semi-automatic aluminum tube filling and sealing machine related parameters
|
Equipment name
|
semi-automatic aluminum tube filling and sealing machine
|
|
Machine voltage：
|
AC220V 50/60HZ
|
|
Applicable air pressure：
|
0.4-0.6Mpa
|
|
Applicable tube diameter：
|
13-35mm
|
|
Applicable tube height：
|
80-180mm
|
|
Filling range：
|
3-30/5-50/10-100/15-150/20-200/30-300ml
|
|
Number of stations：
|
16
|
|
Production speed：
|
10-40 sticks /min
|
|
Machine weight：
|
220kg
|
|
Machine dimension：
|
1130mm*880mm*1496mm
|
tooth paste tube filling and sealing machine operation flow chart:
Manual intubation - pressure tube - benchmarking - filling - tube folding (3 fold / 4 fold) - finished product
Semi-automatic aluminum tube filling and sealing machine details:

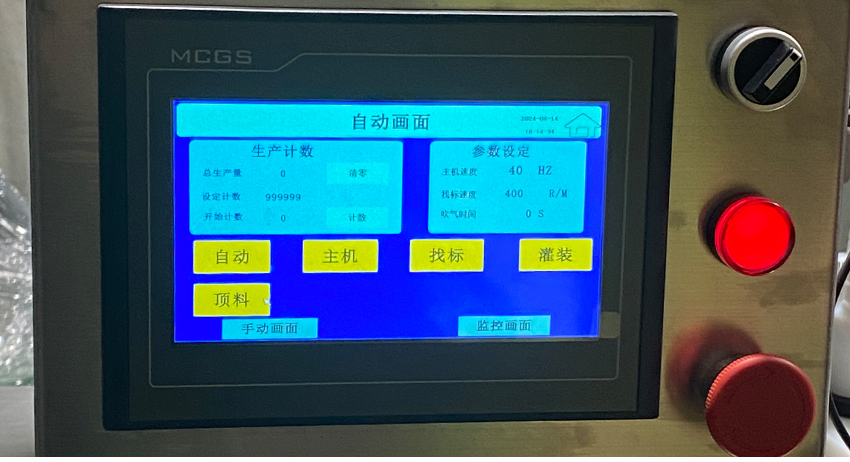

1、Touch screen design, easy to operate
Calibration, filling, production count independent design Simple and easy operation

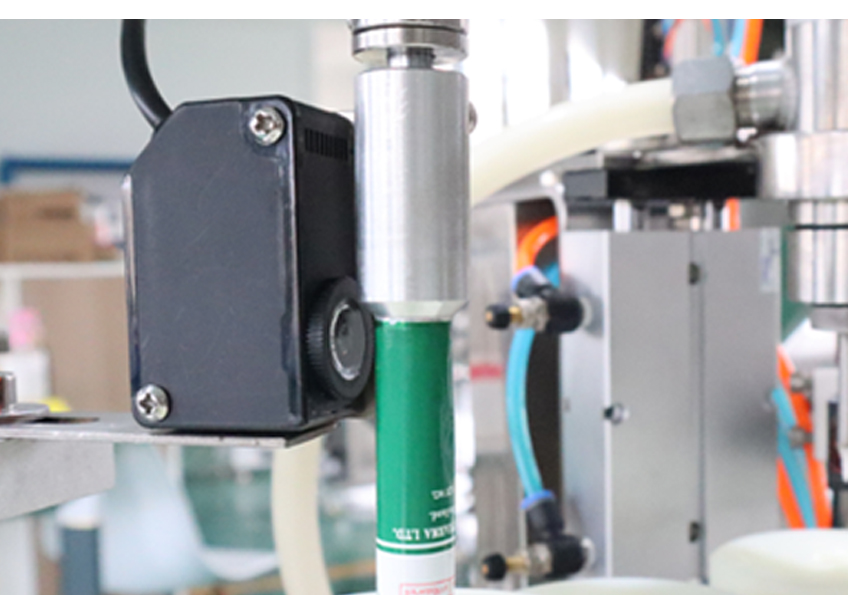

2、Automatic calibration
Can independently adjust the marking mechanism, accurate marking No pipe, no work

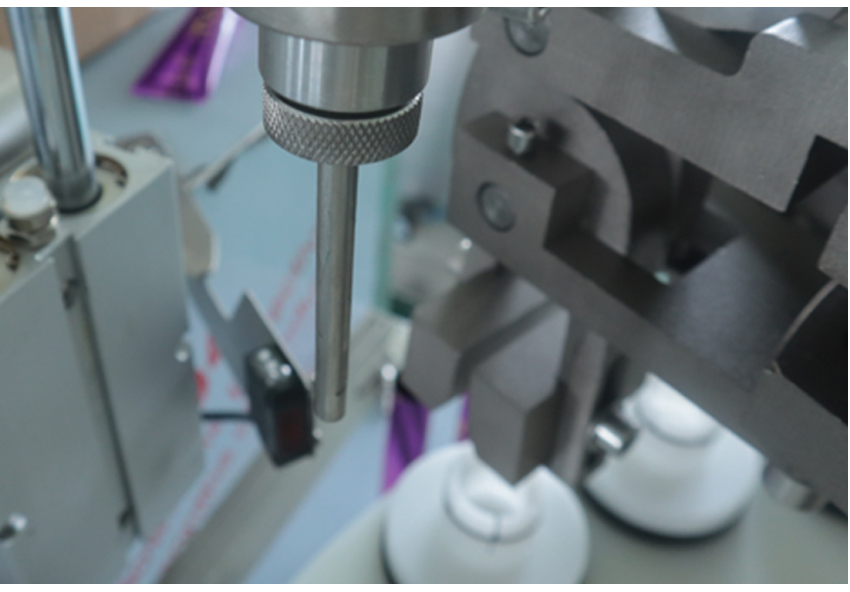

3、anti-leakage
High quality filling head, filling fast prevent material leakage, prevent material wire drawing

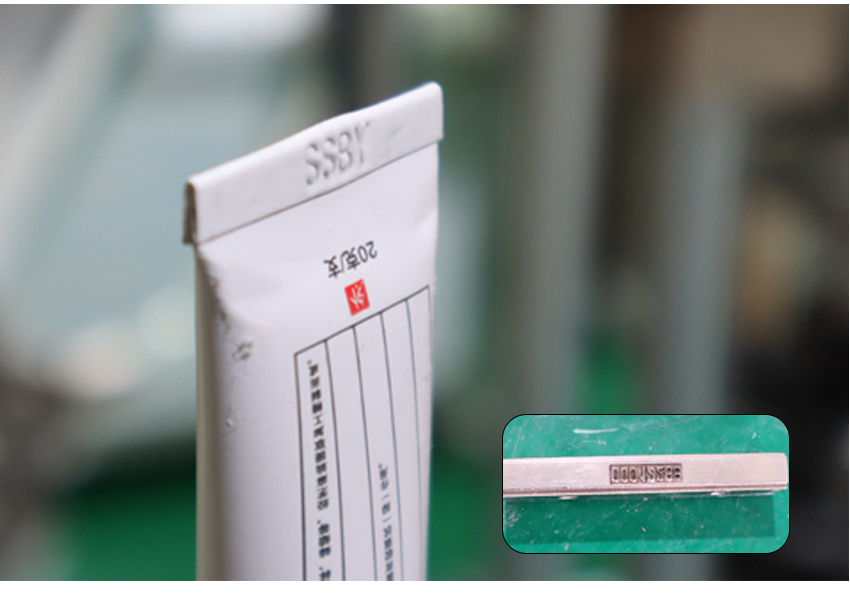

4、Coding date
Production date can be customized according to production requirements

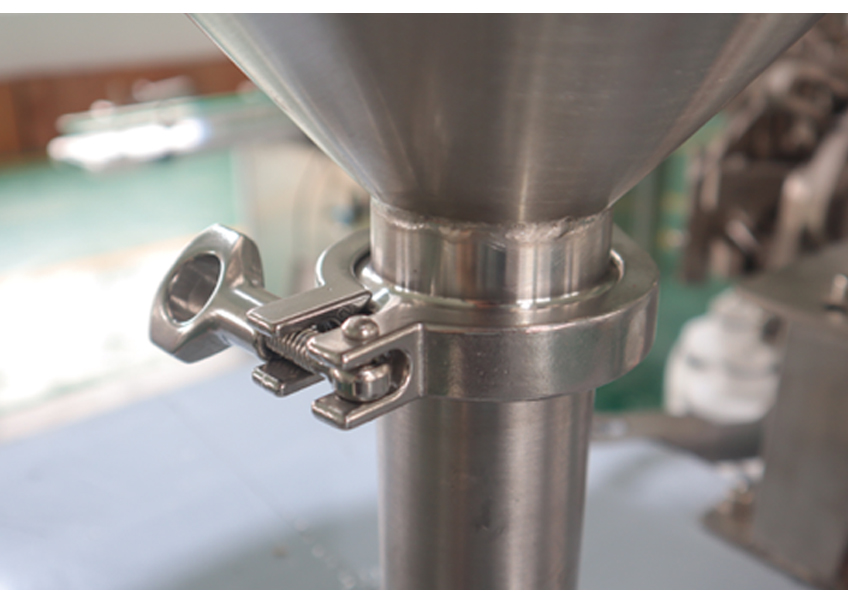

5、Easy to disassemble and wash
Filling part clamp design, easy to disassemble and wash Sealing ring to prevent dripping

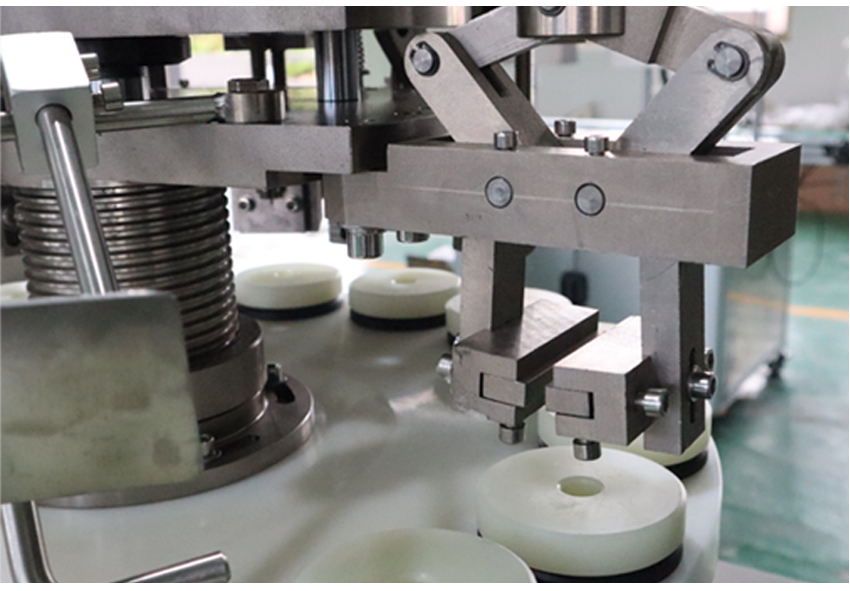

7、Mechanical rotation folding tail
One way two fold tail, two way four fold tail
Aluminium tube filling and sealing machine ：
| machine |
 |
 |
 |
| Model |
GZJR-GF02 |
GZJR-GF02B |
GZJR-GF03 |
| Automatic/semi-automatic |
semi-automatic
|
Fully automatic |
Fully automatic |
|
Feature：
|
Filling and sealing
|
Filling and sealing
|
Filling and sealing
|
|
Working pressure：
|
0.4~0.6Mpa
|
0.4~0.6Mpa
|
0.4~0.6Mpa
|
|
Machine voltage：
|
AC220V 50/60HZ
|
AC220V 50/60HZ
|
AC220V 50/60HZ
|
|
Filling range：
|
3-30/5-50/10-100/15-150/20-200/30-300ml
|
3-30/5-50/10-100/15-150/20-200/30-300ml
|
3-30/5-50/10-100/15-150/20-200/30-300ml
|
|
Applicable tube diameter：
|
13-35mm
|
13-50mm
|
13-50mm
|
|
Applicable tube height：
|
80-180mm
|
80-220mm
|
80-220mm
|
|
Filling velocity：
|
10-40 sticks /min
|
10-50 sticks /min |
10-50 sticks /min |
|
Number of stations：
|
16 |
16 |
16 |
|
Machine weight：
|
220kg |
450kg |
500kg |
|
Machine dimension：
|
1130mm*880mm*1496mm
|
1800mm*980mm*1750mm
|
1940mm*1280mm*1780mm
|
| Tail folding effect： |
Two fold tail
four fold tail
date coding |
Two fold tail
four fold tail
date coding |
Two fold tail
four fold tail
date coding |
|
Scope of application
|
Aluminium tube |
